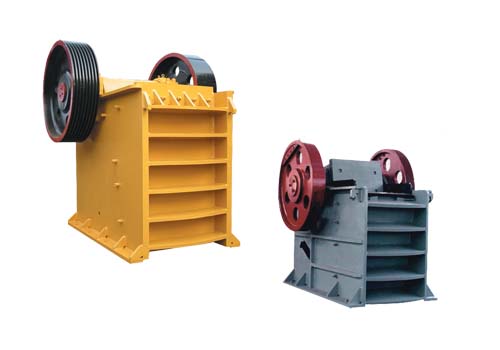

jaw crusher
Price: |
1500.0~6000.0 USD |
Payment Terms: |
T/T;L/C |
Place of Origin: |
Henan, China (Mainland) |
Product Detail
Model No.:
PE series
Production Capacity:
200sets/month
Delivery Date:
15 working days
Type:
Crusher
advantage:
high efficiency
Means of Transport:
ocean shipment
Packing:
wooden case
Application:
Ore
Brand Name:
DAFU
Jaw Crusher which is widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc.
Jaw Crusher which is widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost per ton.
The structure of Jaw Crusher:
The structure of Jaw Crusher includes Main Frame, Main Axle, Roller Bearings, Eccentric Shaft, Jaw Plates, Side Plates, Toggle Mechanism, Fly Wheels and Springs.
The Features of Jaw Crusher:
1. Jaw Crusher is of various types;
2. Jaw Crusher is suitable for crushing maximum, medium and minimum stones;
3. The operating principle of Jaw Crusher is easy to be operated;
4. The structure of Jaw Crusher is simple and it is easy to maintain
Model | Size of Feeder Opening (mm) | Max. Feeding Size (mm) | Capacity (t/h) | Motor Power (KW) | Overall Dimensions (mm) | Weight (t) |
PE150×250 | 150×250 | 125 | 1-3 | 5.5 | 896×745×935 | 1.2 |
PE250×400 | 400×250 | 210 | 5-20 | 15 | 1430×1310×1340 | 2.2 |
PE400×600 | 600×400 | 350 | 15-50 | 37 | 1700×1732×1653 | 6.8 |
PE600×900 | 900×600 | 480 | 45-110 | 75 | 2290×2206×2370 | 17 |
PE900×1200 | 900×1200 | 750 | 90-220 | 110 | 3800×3166×3045 | 50 |
PE500×750 | 500×750 | 425 | 15-65 | 55 | 2035×1921×2000 | 12 |
PE750×1060 | 1060×750 | 630 | 105-195 | 110 | 2655×2302×3110 | 29 |
PEX250×750 | 750×250 | 210 | 15-30 | 37 | 1667×1545×1020 | 5 |
PEX250×1000 | 1000×250 | 210 | 15-50 | 37 | 1550×1964×1380 | 7 |
PEX250×1200 | 1200×250 | 210 | 20-60 | 37 | 2192×1900×1950 | 8.5 |
